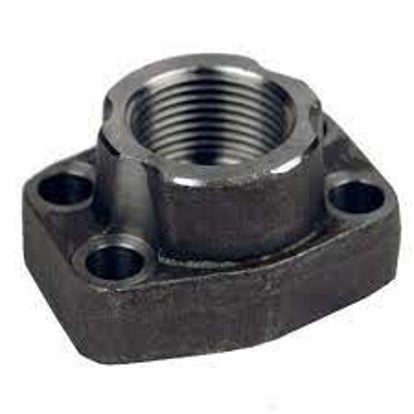

Threaded Flange Straight

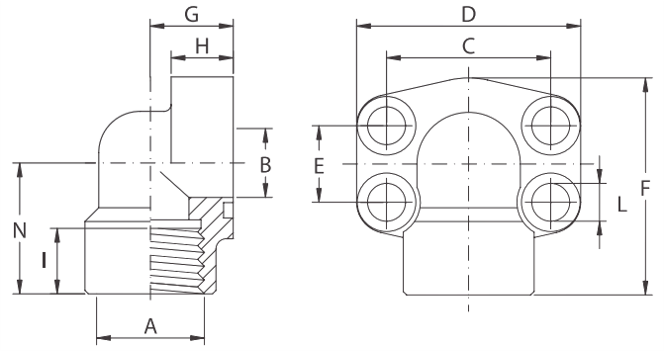

Threaded Flange 90⁰
Before selecting your flange, do make sure that you verify the C & E dimensions. There is a difference between SAE 3000PSI vs SAE 6000PSI.
Make sure that is verified. Kindly note that the BSP Thread side A also has variations.
4A-5521-08-06
4A-5521-08-06
Threaded flange 1/2" 3000PSI-3/8"BSP
AFS080G038
Dimensions
C : 38,10
E : 17,48
L : M8 x 30
4A-5521-08-08
4A-5521-08-08
Threaded flange 1/2" 3000PSI-1/2"BSP
AFS080G
Dimensions
C : 38,10
E : 17,48
L : M8 x 30
4A-5521-12-08
4A-5521-12-08
Threaded flange 3/4" 3000PSI-1/2"BSP
AFS100G012
Dimensions:
C : 47,63
E : 22,23
L : M10 x 35
4A-5521-12-12
4A-5521-12-12
Thread flange 3/4" 3000PSI-3/4"BSP
AFS100G
Dimensions:
C : 47,63
E : 22,23
L : M10 x 35
4A-5521-16-12
4A-5521-16-12
Threaded flange 1" 3000PSI - 3/4"BSP
AFS102G034
Dimensions:
C : 52,37
E : 26,10
L : M10 x 35
4A-5521-16-16
4A-5521-16-16
Thread flange 1" 3000 PSI - 1" BSP
AFS102G
Dimensions:
C : 52,37
E : 26,10
L : M10 x 35
4A-5521-20-16
4A-5521-20-16
Thread flange 1-1/4" 3000 PSI with 1" BSP
AFS104G100
Dimensions:
C : 58,72
E : 30,18
L : M10 x 40
4A-5521-20-20
4A-5521-20-20
Threaded flange 1-1/4" 3000PSI - 1-1/4BSP
AFS104GL13
Dimensions:
C : 58,72
E : 30,18
L : M10 x 40
4A-6521-08-08
4A-6521-08-08
Threaded flange 1/2"6000PSI - 1/2"BSP
AFS401G012
Dimensions:
C : 40,49
E : 18,24
L : M8 x 30
4A-6521-08-06
4A-6521-08-06
Threaded flange 1/2"6000PSI - 3/8"BSP
AFS401G038
Dimensions:
C : 40,49
E : 18,24
L : M8 x 30
4A-6711-12-12
4A-6711-12-12
Thr. Flange 3/4"6000PSI - 3/4"BSP
AFS402G
Dimensions:
C : 47,63
E : 22,23
L : M10 x 35
4A-6711-12-08
4A-6711-12-08
Thr.Flange 3/4"6000 PSI - 1/2"BSP
AFS402G012
Dimensions:
C : 47,63
E : 22,23
L : M10 x 35
4A-6711-16-16
4A-6711-16-16
Thr. Flange 1"6000PSI - 1"BSP
AFS403G
Dimensions:
C : 57,15
E : 27,76
L : M12 x 45
4A-6711-16-12
4A-6711-16-12
Thr. Flange 1" 6000PSI - 3/4"BSP
AFS403G034
Dimensions:
C : 57,15
E : 27,76
L : M12 x 45
4A-6711-20-20
4A-6711-20-20
Thr. Flange5/4"6000PSI - 5/4"BSP
AFS404G
Dimensions:
C : 66,68
E : 31,75
L : M14 x 45
4A-5721-08
4A-5721-08
Threaded Flange 90⁰ 1/2" 3000PSI - 1/2"BSP
AFS08090G
Dimensions
C : 38,10
E : 17,48
L : M8 x 30
4A-5721-08-06
4A-5721-08-06
Threaded Flange 90⁰ 1/2" 3000PSI - 3/8"BSP
AFS08090G038
Dimensions
C : 38,10
E : 17,48
L : M8 x 30
4A-5721-12
4A-5721-12
Threaded Flange 90⁰ 3/4"3000PSI - 3/4"BSP
AFS10090G
Dimensions:
C : 47,63
E : 22,23
L : M10 x 35
4A-5721-12-08
4A-5721-12-08
Threaded Flange 90⁰ 3/4"3000PSI - 1/2"BSP
AFS10090G012
Dimensions:
C : 47,63
E : 22,23
L : M10 x 35
4A-5721-16
4A-5721-16
Threaded Flange 90⁰ 1"3000PSI - 1"BSP
AFS10290G
Dimensions:
C : 58,72
E : 30,18
L : M10 x 40
4A-5721-16-12
4A-5721-16-12
Threaded Flange 90⁰ 1"3000PSI - 3/4"BSP
AFS10290G034
Dimensions:
C : 57,15
E : 27,76
L : M12 x 45
4A-5721-20
4A-5721-20
Thr. Flange 90⁰ 1-1/4"3000PSI - 1-1/4"BSP
AFS10490G
Dimensions:
C : 66,68
E : 31,75
L : M14 x 45
4A-6721-08-08
4A-6721-08-08
Thr. Flange 90⁰ 1/2" 6000 PSI - 1/2"BSP
AFS40190G012
Dimensions:
C : 40,49
E : 18,24
L : M8 x 30
4A-6721-08-06
4A-6721-08-06
Thr. Flange 90⁰ 1/2" 6000 PSI - 3/8"BSP
AFS40190G038
Dimensions:
C : 40,49
E : 18,24
L : M8 x 30
4A-6721-12-12
4A-6721-12-12
Thread Flange 90⁰ 3/4" 6000PSI - 3/4"BSP
AFS40290G
Dimensions:
C : 47,63
E : 22,23
L : M10 x 35
4A-6721-12-08
4A-6721-12-08
Thr. Flange 90 deg 3/4" 6000PSI - 1/2"BSP
AFS40290G012
Dimensions:
C : 47,63
E : 22,23
L : M10 x 35
4A-6721-16-16
4A-6721-16-16
Thr. Flange 90⁰ 1" 6000PSI - 1"BSP
AFS40390G
Dimensions:
C : 57,15
E : 27,76
L : M12 x 45
4A-6721-16-12
4A-6721-16-12
Thr. Flange 90⁰ 1" 6000PSI - 3/4"BSP
AFS40390G034
Dimensions:
C : 57,15
E : 27,76
L : M12 x 45
4A-6721-20-20
4A-6721-20-20
Thr. Flange 90⁰ 1-1/4" 6000PSI - 1-1/4"BSP
AFS40490G
Dimensions:
C : 66,68
E : 31,75
L : M14 x 45
